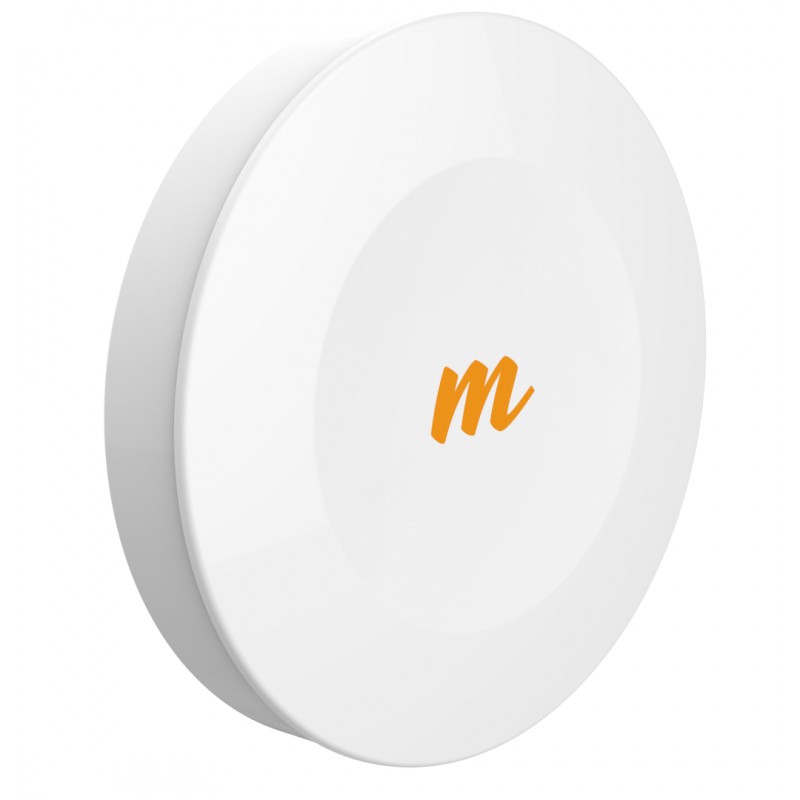

B5
B5
5 GHz 1 Gbps capable PtP backhaul
Categories
Manufacturers
More info
The B5 Backhaul is changing the game. Leveraging 802.11ac, 4x4:4 MIMO and radical engineering for service providers that demand the same capacity, speed and reliability as fiber. With 1.7 Gbps PHY and a unique spin on reliability, the B5 is re-defining gigabit wireless technology.
The B5 is capable of 1 Gbps throughput, a low 2 ms latency and has an integrated dual-polarized antenna with 25 dBi of gain. Ready to handle the next wave of 5 GHz, the B5 is operational from 5150-5850 MHz*.
The B5 brings with it an entirely new set of features never seen before in the outdoor wireless market.
Mimosa
Specifications
| Performance | |
| Max Throughput | Up to 1.0 Gbps IP ( 1.7 Gbps PHY ) |
| Low Latency | 2+ ms |
| Wireless Protocols | TDMA |
| Radio | |
| MIMO & Modulation | 4x4:4 MIMO OFDM up to 256QAM |
| Bandwidth | Single or Dual 20/40/80 MHz channels |
| Frequency Range | 5150-5850 MHz restricted by country of operation (UNII 2 US FCC certification pending) |
| Max Output Power | 30 dBm (2-stream), 27 dBm (4-stream) |
| Sensitivity ( MCS 0 ) | -87 dBm @ 80 MHz -90 dBm @ 40 MHz -93 dBm @ 20 MHz |
| Antenna | |
| Gain | 25 dBi |
| Beamwidth ( 3dB ) | 8° ( Hpol and Vpol ) |
| Elevation Adjust | ± 20° mechanical adjust |
| Front-to-Back Ratio | >30 dB |
| Cross-Polar Isolation | >20 dB or better |
| Polarization | Dual-Linear (horizontal & vertical) |
| Power | |
| Max Power Consumption | 20W |
| System Power Method | 802.3at compliant |
| System Lightning & ESD Protection | 6 kV |
| PoE Power Supply | 56 V Power over Ethernet supply with IEC61000-4-5 surge protection |
| Physical | |
| Dimensions | Diameter: 442 mm (17.4") Depth: 362 mm (14.3") with bracket |
| Weight | 4.9 kg (10.8 lbs) with bracket |

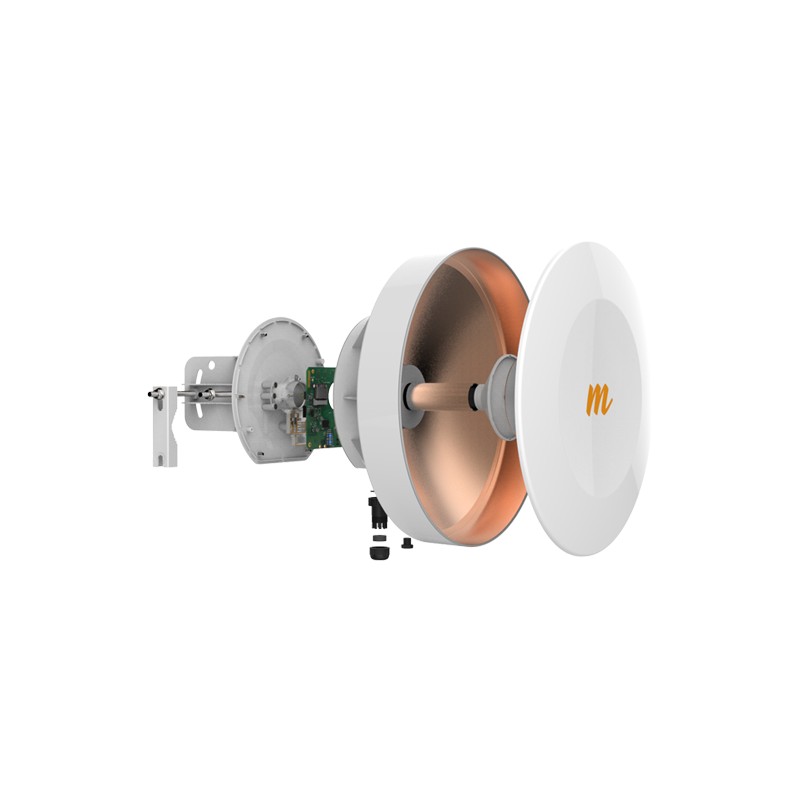

| Enclosure Characteristics | Single enclosure with radome Outdoor UV stabilized plastic Painted steel bracket plate |
| Wind Survivability | 200 kmph (125 mph) |
| Wind Loading | 39 kg @ 160 kmph (86 lbs @ 100 mph) |
| Mounting | Pole mounting kit included for 30mm (1.18") to 90mm (3.54") OD pipes |
| Environmental | |
| Outdoor Ingress Protection Rating | IP67 |
| Operating Temperature | -40°C to +55°C (-40°F to 131°F) |
| Operating Humidity | 5 to 100% condensing |
| Operating Altitude | 4420 m (14500') maximum |
| Shock & Vibration | ETS 300-019-2-4 class 4M5 |
| Features | |
| Gigabit Ethernet | 10/100/1000-BASE-T |
| Dual Link Operation | 2 independent dual-stream radios operating on non-contiguous frequencies Automatic load balancing of traffic across 4 total MIMO streams with individual stream encoding up to 256 QAM |
| Management Services | Mimosa cloud monitoring and management SNMPv2 & Syslog legacy monitoring HTTPS HTML 5 based Web UI 2.4 GHz 802.11b/g/n radio for local management access |
| Smart Antenna Alignment | Hands-Free dedicated 2.4 GHz Wi-Fi management radio |
| Smart Spectrum Management | Active scan monitors/logs ongoing RF interference across channels (no service impact) Dynamic auto-optimization of channel and bandwidth use |
| Security | 128-bit AES PSK with hardware acceleration |
| QoS | Supports 4 preconfigured QoS levels |
| GPS Location | GNSS-1 (GPS + GLONASS) |
| Colocation Synchronization | 1PPS GPS TX/RX synchronization for colocated co-channel radios Adjustable up/downstream bandwidth ratio |
| Regulatory + Compliance | |
| Approvals | FCC Part 15.407, IC RS10, CE, ETSI 301 893/302 502 |
| RoHS Compliance | Yes |
| Safety | UL/EC/EN/ 60950-1 + CSA-22.2 |
