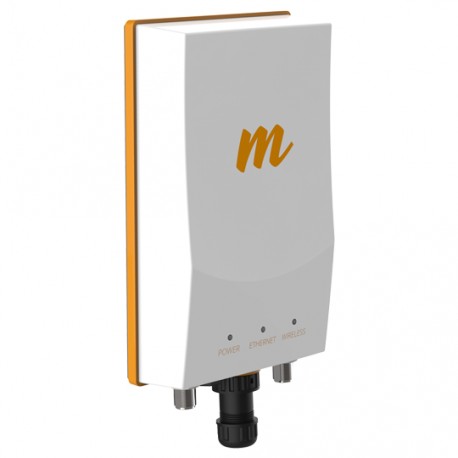

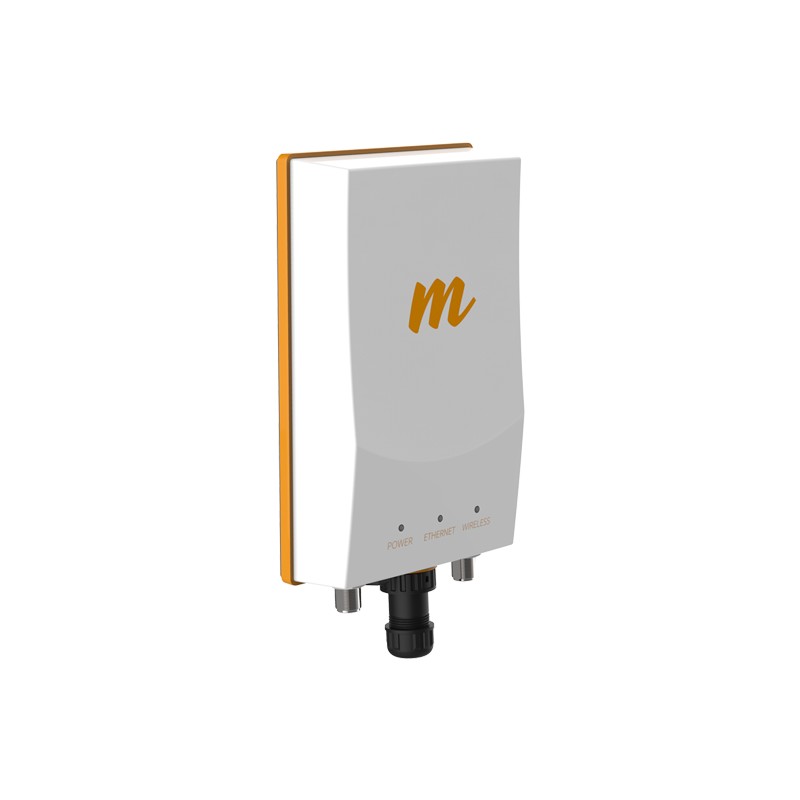

B5c
B5c
5 GHz PtP Radio, N-type Connectors
Categories
Manufacturers
More info
The B5c Backhaul is changing the game. Leveraging 802.11ac, 4x4:4 MIMO and radical engineering for service providers that demand the same capacity, speed and reliability as fiber. With 1.7 Gbps PHY and a unique spin on reliability, the B5c is re-defining gigabit wireless technology.
The B5c is capable of 1 Gbps throughput and a low 2 ms latency. The B5c can be paired with any dual-polarized antenna and is operational from 4900-6000 MHz*.
The B5c brings with it an entirely new set of features never seen before in the outdoor wireless market.
Mimosa
Specifications
| Performance | |
| Max Throughput | Up to 1.0 Gbps IP (1.7 Gbps PHY) |
| Low Latency | 2+ ms |
| Wireless Protocols | TDMA |
| Radio | |
| MIMO & Modulation | 4x4:4 MIMO OFDM up to 256QAM |
| Bandwidth | Single or Dual 20/40/80 MHz channels |
| Frequency Range | 4900-6000 MHz restricted by country of operation (UNII 2 US FCC certification pending) |
| Max Output Power | 30 dBm (2-stream), 27 dBm (4-stream) |
| Sensitivity ( MCS 0 ) | -87 dBm @ 80 MHz -90 dBm @ 40 MHz -93 dBm @ 20 MHz |
| Power | |
| Max Power Consumption | 20W |
| System Power Method | 802.3at compliant |
| System Lightning & ESD Protection | 6 kV |
| PoE Power Supply | 56 V Power over Ethernet supply with IEC61000-4-5 surge protection |
| Physical | |
| Dimensions | Height: 267 mm (10.5") Width: 158 mm (6.2") Depth: 74 mm (3") |
| Weight | 1.6 kg (3.5 lbs) |
| Enclosure Characteristics | Outdoor UV stabilized plastic Aluminum mounting panel |
| Mounting | Dual standard pole straps for 30 mm (1.18") to 90 mm (3.54") OD pipes |
| Connector Type | Female Type N (x2), intended for use with dual polarization antenna |
| Environmental | |
| Outdoor Ingress Protection Rating | IP67 |
| Operating Temperature | -40°C to +55°C (-40°F to 131°F) |
| Operating Humidity | 5 to 100% condensing |
| Operating Altitude | 4420 m (14500') maximum |
| Shock & Vibration | ETS 300-019-2-4 class 4M5 |
| Features | |
| Gigabit Ethernet | 10/100/1000-BASE-T |
| Dual Link Operation | 2 independent dual-stream radios operating on non-contiguous frequencies Automatic load balancing of traffic across 4 total MIMO streams with individual stream encoding up to 256 QAM |
| Management Services | Mimosa cloud monitoring and management SNMPv2 & Syslog legacy monitoring HTTPS HTML 5 based Web UI 2.4 GHz 802.11b/g/n radio for local management access |
| Smart Antenna Alignment | Hands-free dedicated 2.4 GHz Wi-Fi management radio alignment tool |
| Smart Spectrum Management | Active scan monitors/logs ongoing RF interference across channels (no service impact) Dynamic auto-optimization of channel and bandwidth use |
| Security | 128-bit AES PSK with hardware acceleration |
| QoS | Supports 4 pre-configured QoS levels |
| GPS Location | GNSS-1 (GPS + GLONASS) |
| Colocation Synchronization | 1PPS GPS TX/RX synchronization for colocated co-channel radios Adjustable up/downstream bandwidth ratio |
| Regulatory + Compliance | |
| Approvals | FCC Part 15.407, IC RS10, CE, ETSI 301 893/302 502 |
| RoHS Compliance | Yes |
| Safety | UL/EC/EN/ 60950-1 + CSA-22.2 |
