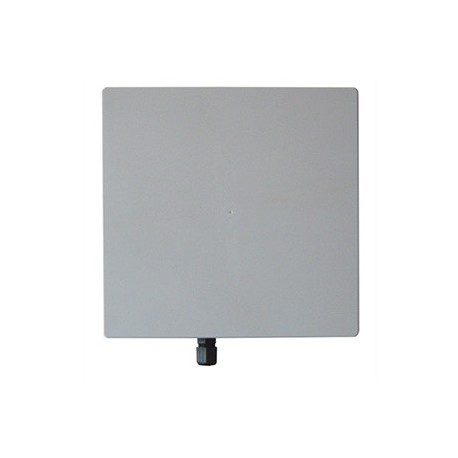

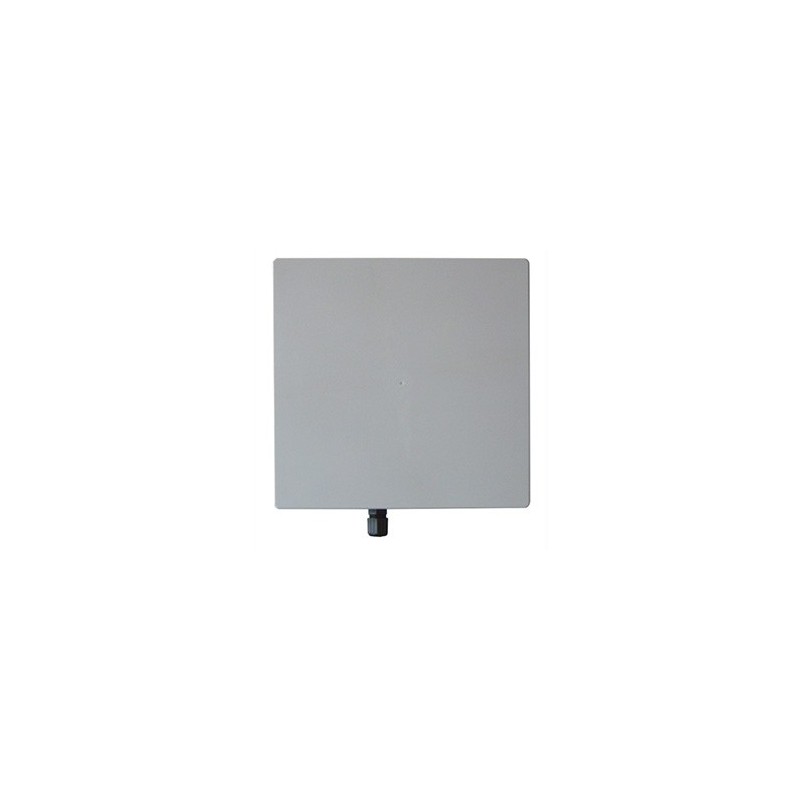

The CPE 5-20 product marks the launch of the 5 GHz, integrated antenna units on the Deliberant product line. This high powered, carrier-grade product operates on a Linux-based core operating system - providing an increased amount of flexibility, stability, features, and management functions that are not present in other WISP products on the market today. The CPE 5-20 product is field proven and delivers superior 5 GHz performance designed to serve the needs of WISPs both large and small. The CPE 5-20 is also compatible with RCMS, a centralized configuration, firmware, and statistics server for carrier class management.

The hardware features of the CPE 5-20 include a powerful 24dBm RF engine with an integrated 20dBi wide-band panel antenna. The combination of high output power, high antenna gain, and narrow beamwidth make this product perfect for 5 GHz client operation. The radio is also encased in a sleek, durable outdoor enclosure built to withstand extreme operating environments and the harshest of conditions for use in any WISP network.

Product contains:

• Adjustable RF Output power
• High gain 20dBi integrated panel antenna
• Full, half, and quarter bandwidth channels
• PoE built-in for single cable installation
• Configurable Multi-mode CPE
  • Client/Client Router
  • WDS
• Latest security technologies
• Comprehensive software features
  • IP routing
  • DHCP client/server/relay
  • DNS relay/proxy
  • Stateful inspection firewall
  • MAC/IP filtering
  • Digital device certificates
  • Multicast video support for CCTV or IPTV (IGMPv3)
• Comprehensive management features
  • Web GUI
  • Command line management via SSH
  • RCMS server support for configuration
  • SNMP V1/2 with traps supporting MIBs: 802.1, 802.1x, MIBII
  • Syslog support
