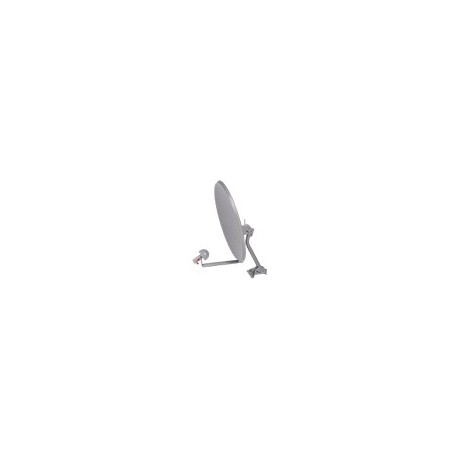

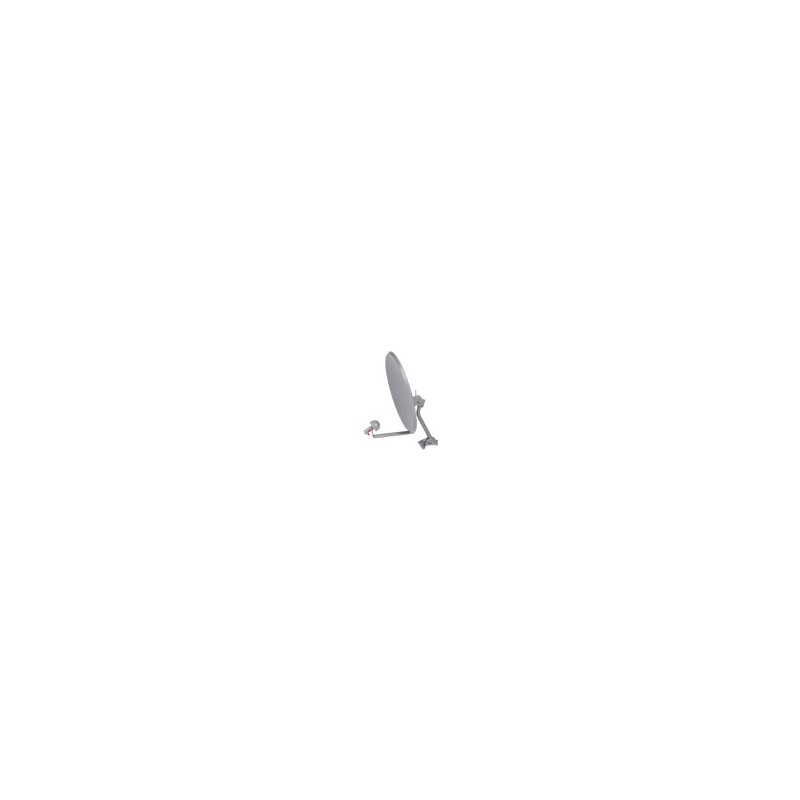

The 58DP31 reflector is built with the addition of a very high quality dual polarized feed horn.

This form factor is well suited for residential and low-profile commercial installations, especially in upscale neighborhoods, and would be recognized by most casual observers as nothing more than a satellite TV antenna.

Coupled with our Force Plate™ mounting system (sold separately), this antenna ensures a very solid point-to-point solution for critical backhaul applications. It also serves as a robust point-to-multipoint extended range antenna.

Features

• Wide-Band 5.2-5.8 GHz
• Integral Feed Radome for snow and ice resistance
• AccuAim™ elevation adjustment
• High efficiency offset feed
• Light weight

Specifications



Frequency:

5.2-5.8 GHz





Gain:

31.5 dBi





Effective Aperture:

30 inches (76 cm)





Beamwidth:

4°





F/B Ratio:

30 dB





V/H Port Isolation:

>20 dB





Input Power:

100 W (max)





Impedance:

50 Ohms





Connector:

Type N female x 2





Wind Load:

Operational 50mph (80.5KM/hr)

Survival 100mph (161 KM/hr)





Height:

34.3 inches (87 cm)





Width:

31.5 inches (80 cm)





Polarization:

Dual
