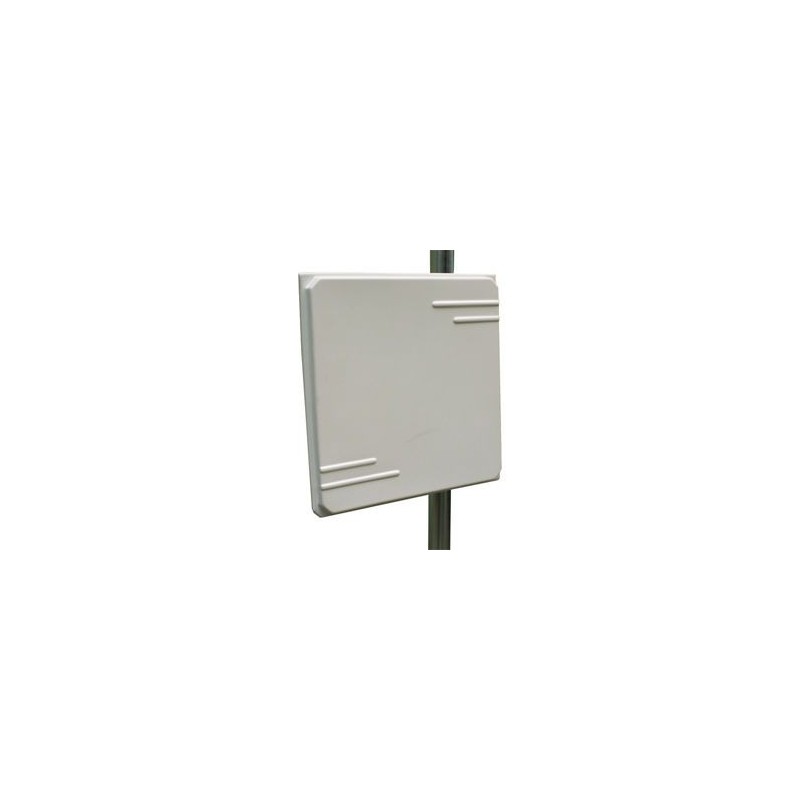

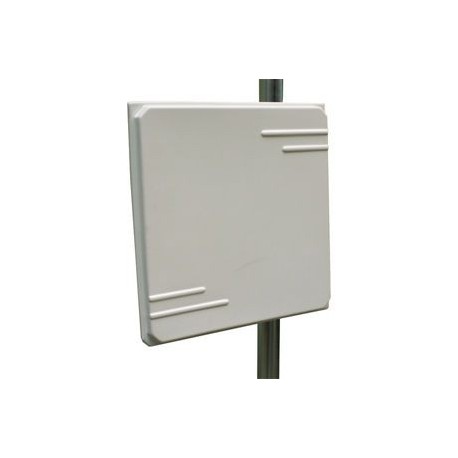

Antenna working in 5 GHz band with two independent directional panel antennas with 21 dBi gain with
vertical and horizontal polarization. It is the ideal solution for MIMO and Nstreme dual configuration. Perfectly
designed for operation under severe weather conditions. Proper materials allow operation in the salty water
environment without corrosion. High quality construction of pole mounting elements guarantee easy elevation
and easy tilt down as well as rock-stable operation. It can be used as customer premise equipment and also
as small base stations.

Electrical Properties

Frequency

5.4 - 5.85 GHz

Gain

2x21dBi

Polarization

dual H&V

Beamwidth deg horizontal

10°

Beamwidth deg vertical

20°

VSWR

<1,8

Impedance

50 ohm

Front to back ratio

> 35dB

Port Isolation

> 45dB

Enclosure Properties

Technology:

Microstrip

Material:

UV protected

Colour:

White

Min temperature:

-40°C / -40°F

Max temperature:

80°C / 176°F

Mechanical Properties

Input Connector

N-type / female

Outsite Dimensions

345x345x20mm / 13.6x13.6x0.8"

Weight

1.3kg / 2,9lbs

PAT50021-dual
