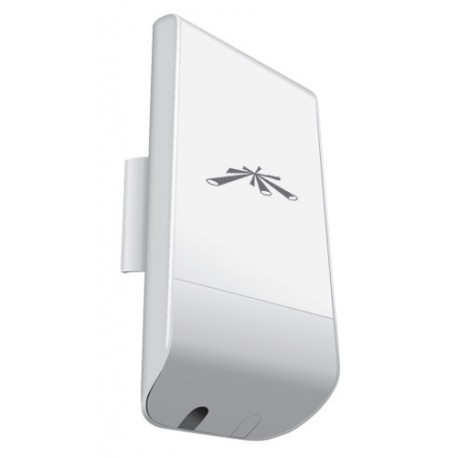

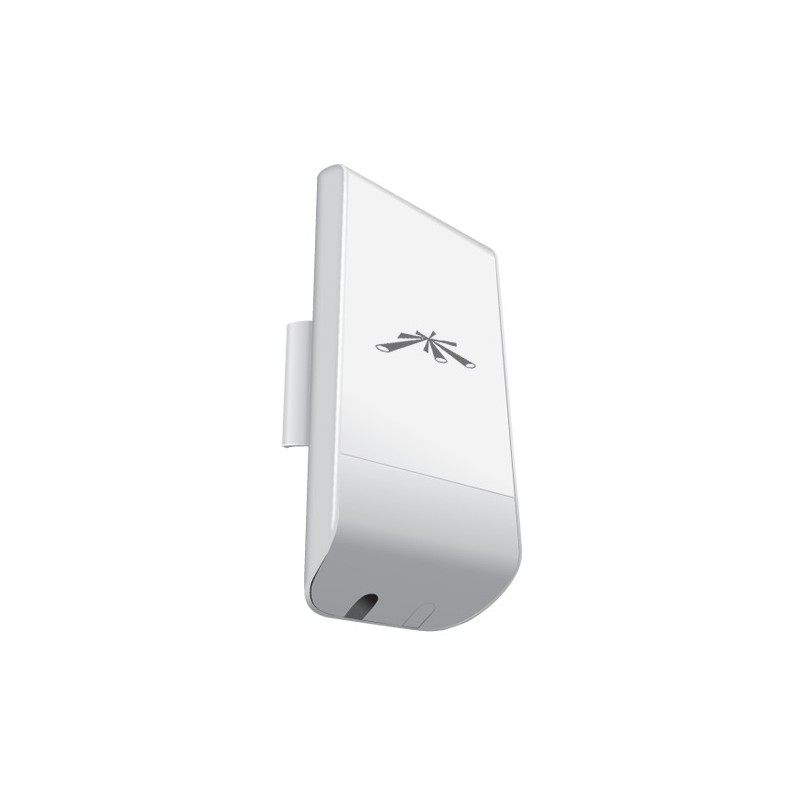

LocoM5 by Ubiquiti WIRELESS CPE, OUTDOOR 2x2 MIMO 13BDI DUAL-POL 802.11a/n 200m NanoStation Loco M5: Compact and cost-effective AirMax 5GHz CPE 150+ Mbps real outdoor throughput and up to 15km+ range. Featuring 2x2 MIMO technology, the new LocoStation M links significantly faster and farther than ever before.New antenna array designs featuring 13dBi dual-polarity gain at 5GHz with optimized cross-polarity isolation in a compact form-factor.Remote hardware reset circuitry of LocoStation M allows for device to be reset remotely from power supply location. In addition, any LocoStation can easily become 802.3af 48V compliant through use of Ubiquiti's Instant 802.3af adapter. Power supply: 110-240VAC 24VDC 0.5A US-style plug

CLICK HERE FOR DATA SHEET

LocoM5 Specifications

Model: locoM5
Frecuency: 5 GHz
Gain: 13 dBi

System Information

Model: locoM5
Processor Specs: Atheros MIPS 24KC, 400 MHz
Memory: 32 MB SDRAM, 8 MB Flash
Networking Interface: (1) 10/100 Ethernet Port

Regulatory/Compliance Information

Model: locoM5
Wireless Approvals: FCC Part 15.247, IC RS210, CE
RoHS Compliance: Yes

Physical/Electrical/Environmental

Model: LocoM5
Dimensions (mm): 163 x 31 x 80
Weight: 0.18 kg
Power Supply (PoE): 24V, 0.5A
Max. Power Consumption: 5.5 W
Gain: 13 dBi
Polarization: Dual Linear
Enclosure Characteristics: Outdoor UV Stabilized Plastic
Mounting: Pole Mounting Kit Included
Power Method: Passive Power over Ethernet (pairs 4, 5+; 7, 8 return)
Operating Temperature: -30 to 75° C
Operating Humidity: 5 to 95% Condensing
Shock & Vibration: ETSI300-019-1.4

Operating Frequency Summary (MHz)

Model: locoM5
Worldwide: 5170 - 5875
USA: 5725 - 5850
USA DFS: 5250 - 5850
