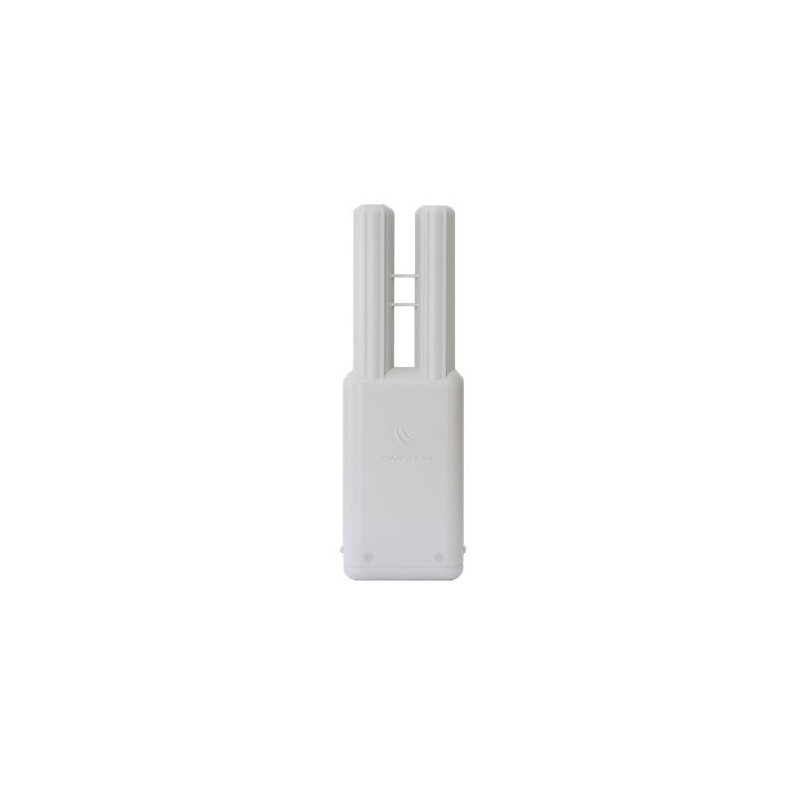

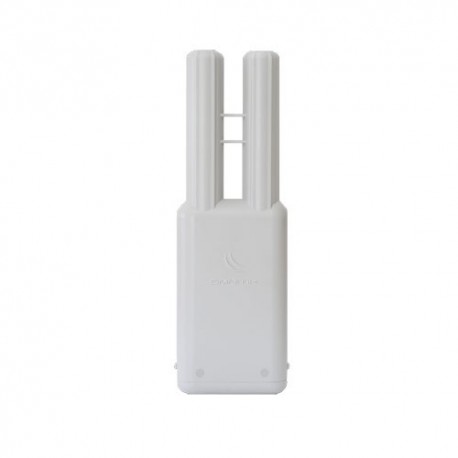

OmniTIK is a weatherproof outdoor AP with dual-polarized omni antennas - the perfect companion for our SXT, or for any other 5GHz 802.11a/n standard device.

Weatherproof, durable and ready to use. It has five 10/100 Ethernet ports, PoE support and a built-in 400mW 802.11a/n wireless radio. It supports Nv2 TDMA technology with up to 200Mbit aggregate throughput.

LED signal indicators on it’s back are fully customisable, show Ethernet activity or wireless signal - or any other information from RouterOS. The USB port gives the ability to connect a 3G modem or a storage drive.

The OmniTIK UPA also features power output on it’s ethernet ports. Ports 2-5 can power other PoE capable devices with the same voltage as applied to the unit. Less power adapters to worry about.

Features:

• Product code        RBOMNITIKUPA5HnD
• CPU speed        400MHz
• Antenna gain        7.5dBi
• TX power        26dBm
• Current Monitor        No
• RAM            32MB
• Architecture        MIPS-BE
• LAN ports        5
• Gigabit            No
• MiniPCI            0
• Integrated Wireless    Yes
• Wireless standards    802.11an
• USB            Yes
• Memory Cards        No
• Power Jack        No
• 802.3af support        No
• PoE            8-30V, Supports PoE output on ports 2-5. Max current 500mA per port
• Voltage Monitor        No
• PCB temperature     monitor    No
• CPU temperature     monitor    No
• Dimensions        368x125x55mm
• Operating System    RouterOS
• Temperature range    -30 .. +70C
• RouterOS License    Level 4
