RB911-5HnD
RB911-5HnD
RB911-5HnD Router Board
Categories
Manufacturers
More info

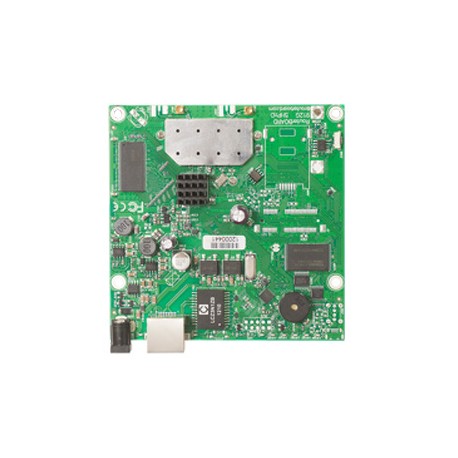

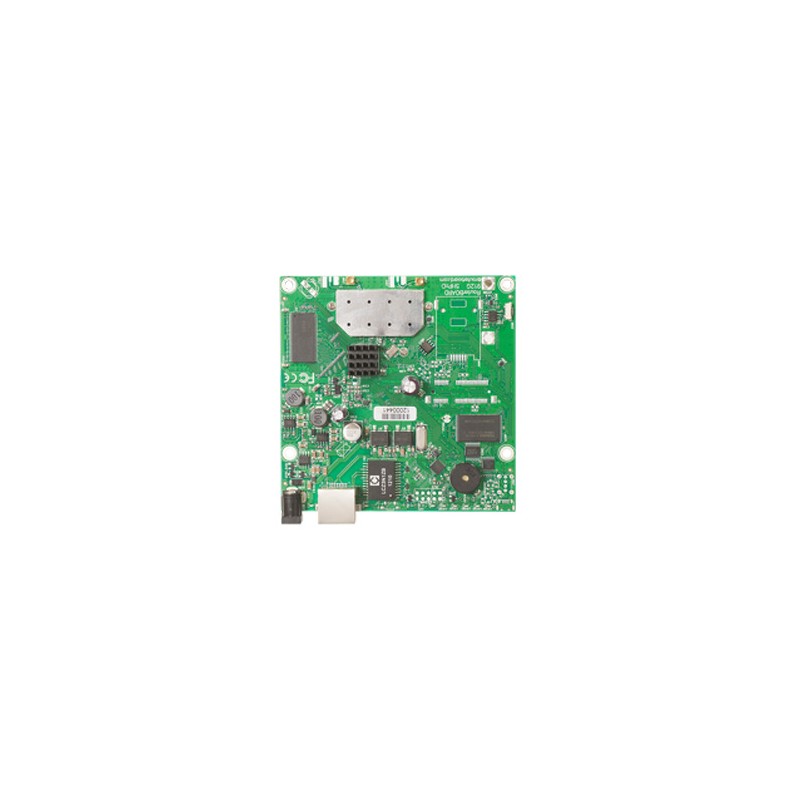

The RB911G-5HPnD is a small wireless router with an integrated 5Ghz high power wireless card. The Gigabit port helps to utilize the full potential of 802.11n wireless speeds.
The integrated wireless card is capable of up to 1000mW output power. It has built in 16kV ESD protection on both the Ethernet and the
MMCX ports.
Product specifications
| Details | |
|---|---|
| Product code | RB911G-5HPnD |
| CPU nominal frequency | 600 MHz |
| CPU core count | 1 |
| Size of RAM | 32 MB |
| 10/100 Ethernet ports | 0 |
| 10/100/1000 Ethernet ports | 1 |
| MiniPCI slots | 0 |
| MiniPCI-e slots | 0 |
| Wireless chip model | AR9342-BL1A |
| Wireless standards | 802.11a/n |
| Number of USB ports | 0 |
| Power Jack | Yes |
| PoE | Yes |
| Voltage Monitor | Yes |
| PCB temperature monitor | Yes |
| CPU temperature monitor | No |
| Dimensions | 105x105mm |
| Operating System | RouterOS |
| Operating temperature range | -35C to +65C |
| License level | L3 |
| Current Monitor | No |
| TX power | 30dBm |
| CPU | AR9342-BL1A |
| Max Power consumption | 11W at 24V |
| SFP ports | 0 |
| Number of chains | 2 |
