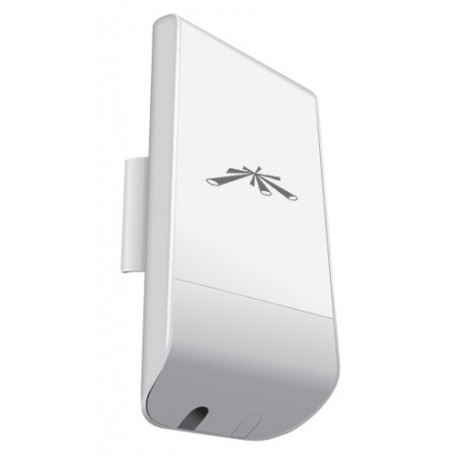

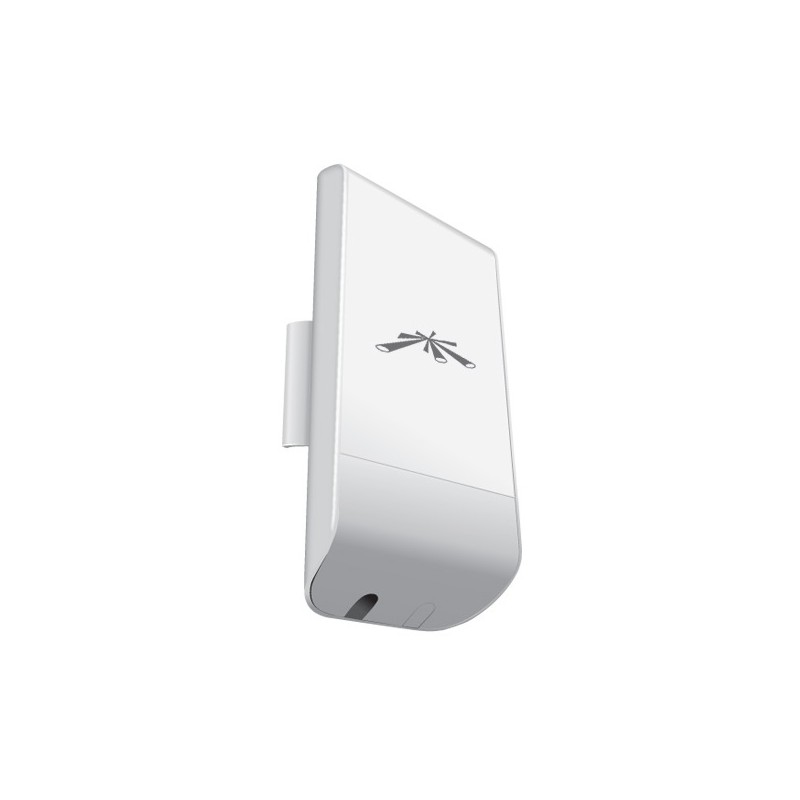

LocoM2, NanoStation, WIRELESS CPE, OUTDOOR 2x2 MIMO 8DBI DUAL-POL 802.11The original NanoStation set the bar for the world's first low-cost and efficiently designed outdoor broadband CPE. The new NanoStation M and NanoStation Loco M take the same concept to the future with new redesigned sleek and elegant form-factors. 150+ Mbps real outdoor throughput and up to 15km+ range. Featuring 2x2 MIMO technology, the new NanoStation links significantly faster and farther than ever before.

LocoM2 Specifications

Model: locoM2
Frecuency: 2.4 GHz
Gain: 8dBi

System Information

Model: locoM2
Processor Specs: Atheros MIPS 24KC, 400 MHz
Memory: 32 MB SDRAM, 8 MB Flash
Networking Interface: (1) 10/100 Ethernet Port

Regulatory/Compliance Information

Model: locoM2
Wireless Approvals: FCC Part 15.247, IC RS210, CE
RoHS Compliance: Yes

Physical/Electrical/Environmental

Model: LocoM2
Dimensions (mm): 163 x 31 x 80
Weight: 0.18 kg
Power Supply (PoE): 24V, 0.5A
Max. Power Consumption: 5.5 W
Gain: 8 dBi
Polarization: Dual Linear
Enclosure Characteristics: Outdoor UV Stabilized Plastic
Mounting: Pole Mounting Kit Included
Power Method: Passive Power over Ethernet (pairs 4, 5+; 7, 8 return)
Operating Temperature: -30 to 75° C
Operating Humidity: 5 to 95% Condensing
Shock & Vibration: ETSI300-019-1.4

Operating Frequency Summary (MHz)

Model: locoM2
Worldwide: 2412-2462
USA: 2412-2462
